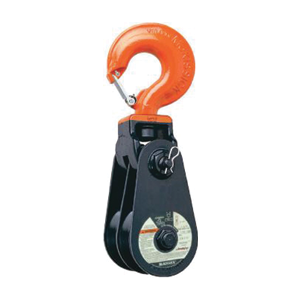

• CROSBY DOUBLE SHEAVE SNATCH BLOCK
1 2

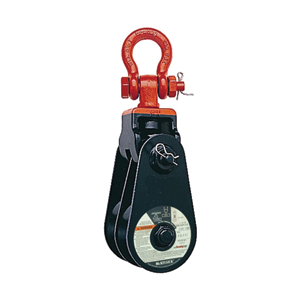

CROSBY DOUBLE SHEAVE SNATCH BLOCKS

CROSBY DOUBLE SHEAVE SNATCH BLOCKS

CROSBY

  • CROSBY GROUP - 408 & 409 Series - MADE IN U.S.A.
  • Capacity (4 Ton - 12 Ton)
  • Sheave Diameter (4-1/2" to 8") Wire Rope Diameter (3/8" up to 3/4")
  • Two Sheave snatch block to allow for additional mechanical advantage, must be reeved with four parts of line.
  • Opening feature permits permits easy insertion of wireline in both sheaves for removal of one bolt.
  • Furnished with Bronze Bushing (Roller Bearings available upon request)
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wireline diameters.
  • Meets or exceeds all requirements of ASME B30.26.
  • These blocks meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26

$976.50 USD
$1,085.00 USD $976.50 USD
Sale Call For Lead Time (708) 681-1800
Shipping calculated at checkout.

104023
