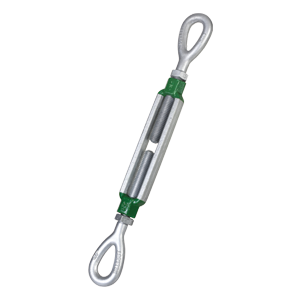

EYE - EYE TURNBUCKLE 1-1/2" X 18" (9.71 TON)

EYE - EYE TURNBUCKLE 1-1/2" X 18" (9.71 TON)

GREEN PIN - VAN BEEST

The Green Pin® EE Turnbuckle is a turnbuckle with eye-eye end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EE Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").

$439.85 USD
$527.81 USD $439.85 USD
Sale Call For Lead Time (708) 681-1800
Shipping calculated at checkout.

SSGPOO3818

Specifications

  • Safety factor-MBL equals 5 x WLL
  • Finish-Hot dipped galvanized
  • Temp. range-20°C up to +200°C
  • Certification-2.1, 2.2, 3.1, MTCa, CE
  • Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b

SPECIFICATION DOWNLOAD PAGE

Materials

Drop forged high tensile steel SAE 1035 or 1045
