EYE - EYE TURNBUCKLE 3/4" X 9" (2.36 TON)
EYE - EYE TURNBUCKLE 3/4" X 9" (2.36 TON)
GREEN PIN - VAN BEEST

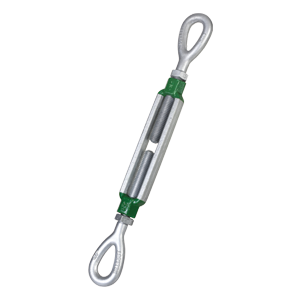

The Green Pin® EE Turnbuckle is a turnbuckle with eye-eye end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® EE Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8" (take up of 6") up to 2 3/4" (take up of 24").
Regular price
$57.79 USD
Regular price
$69.35 USD
Sale price
$57.79 USD
Unit price
/
per
SKU:SSGPOO1909
Specifications
Specifications
- Safety factor-MBL equals 5 x WLL
- Finish-Hot dipped galvanized
- Temp. range-20°C up to +200°C
- Certification-2.1, 2.2, 3.1, MTCa, CE
- Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Materials
Materials
Drop forged high tensile steel SAE 1035 or 1045
