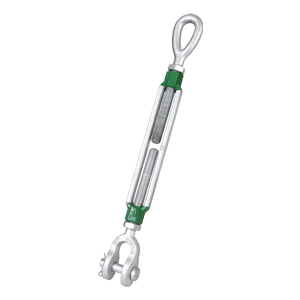

JAW - EYE TURNBUCKLE 1" X 24" (4.5 TON)
JAW - EYE TURNBUCKLE 1" X 24" (4.5 TON)
GREEN PIN - VAN BEEST
The Green Pin® EJ Turnbuckle is a turnbuckle with eye-jaw end-fittings, generally to ASTM F1145-92. The jaw is fitted with a safety bolt for sizes with a diameter thread up to 5/8" and fitted with a cotter pin for sizes with a diameter thread 3/4" and up. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin®EJ Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8"(take up of 6") up to 2 3/4" (take up of 24").
Regular price
$227.34 USD
Regular price
$272.81 USD
Sale price
$227.34 USD
Unit price
/
per
SKU:SSGPGO2524
Specifications
Specifications
- Safety factor-MBL equals 5 x WLL
- Finish-Hot dipped galvanized
- Temp. range-20°C up to +200°C
- Certification-2.1, 2.2, 3.1, MTCa, CE
- Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Materials
Materials
Drop forged high tensile steel SAE 1035 or 1045
