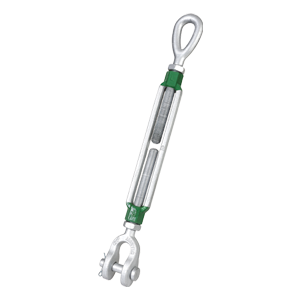

JAW - EYE TURNBUCKLE 2" X 24" (16.8 TON)

JAW - EYE TURNBUCKLE 2" X 24" (16.8 TON)

GREEN PIN - VAN BEEST

The Green Pin® EJ Turnbuckle is a turnbuckle with eye-jaw end-fittings, generally to ASTM F1145-92. The jaw is fitted with a safety bolt for sizes with a diameter thread up to 5/8" and fitted with a cotter pin for sizes with a diameter thread 3/4" and up. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin®EJ Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread 3/8"(take up of 6") up to 2 3/4" (take up of 24").

$811.13 USD
$1,216.70 USD $811.13 USD
Sale Call For Lead Time (708) 681-1800
Shipping calculated at checkout.

SSGPGO5024

Specifications

  • Safety factor-MBL equals 5 x WLL
  • Finish-Hot dipped galvanized
  • Temp. range-20°C up to +200°C
  • Certification-2.1, 2.2, 3.1, MTCa, CE
  • Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b

SPECIFICATION DOWNLOAD PAGE

Materials

Drop forged high tensile steel SAE 1035 or 1045
