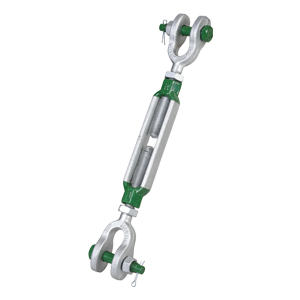

JAW - JAW TURNBUCKLE 1-1/4" X 18" (6.9 TON)
JAW - JAW TURNBUCKLE 1-1/4" X 18" (6.9 TON)
GREEN PIN - VAN BEEST
The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin® JJ Turnbuckle BN is available in a range with a diameter thread of 3/8" (take up of 6") up to 2 3/4" (take up of 24").
Regular price
$381.52 USD
Regular price
$457.82 USD
Sale price
$381.52 USD
Unit price
/
per
SKU:SSGPGG3218
Specifications
Specifications
- Safety factor-MBL equals 5 x WLL
- Finish-Hot dipped galvanized
- Temp. range-20°C up to +200°C
- Certification-2.1, 2.2, 3.1, MTCa, CE
- Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b
Materials
Materials
Drop forged high tensile steel SAE 1035 or 1045
