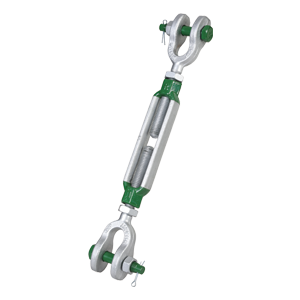

JAW - JAW TURNBUCKLE 1" X 6" (4.54 TON)

JAW - JAW TURNBUCKLE 1" X 6" (4.54 TON)

GREEN PIN - VAN BEEST

The Green Pin® JJ Turnbuckle BN is a turnbuckle with jaw-jaw end-fitting and a safety bolt, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin® JJ Turnbuckle BN is available in a range with a diameter thread of 3/8" (take up of 6") up to 2 3/4" (take up of 24").

Regular price $129.68 USD
Regular price $155.62 USD Sale price $129.68 USD
Sale Call For Lead Time (708) 681-1800
Shipping calculated at checkout.

SKU:SSGPGG2506

Specifications

  • Safety factor-MBL equals 5 x WLL
  • Finish-Hot dipped galvanized
  • Temp. range-20°C up to +200°C
  • Certification-2.1, 2.2, 3.1, MTCa, CE
  • Standard-Generally to ASTM F1145-92, formerly U.S. Federal Specification FF-T-791b

SPECIFICATION DOWNLOAD PAGE

Materials

Drop forged high tensile steel SAE 1035 or 1045
