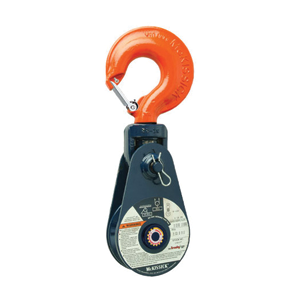

• CROSBY SINGLE SHEAVE SNATCH BLOCK
1 1

CROSBY SINGLE SHEAVE SNATCH BLOCKS

CROSBY SINGLE SHEAVE SNATCH BLOCKS

CROSBY

  • CROSBY GROUP 418 & 419 SERIES - MADE IN USA.
  • Capacity (2 Ton - 30 Ton)
  • Sheave Diameter (3" to 24") Wire Rope Diameter (5/16" up to 1-1/4")
  • Opening feature permits easy insertion of rope without reeving, or while the block is suspended.
  • Furnished with Bronze Bushing (Roller Bearings available upon request)
  • Center pin equipped with pressure lube fitting.
  • All sizes feature sheave grooves suited for a range of wireline diameters.
  • Meets or exceeds all requirements of ASME B30.26.
  • These blocks meet other critical performance requirements including fatigue life and material traceability, not addressed by ASME B30.26

$243.90 USD
$271.00 USD $243.90 USD
Sale Call For Lead Time (708) 681-1800
Shipping calculated at checkout.

108038

Specifications

2-12TON HOOK FITTING SPECS

15-30TON HOOK FITTING SPECS

2-12TON SHACKLE FITTING SPECS

15-60TON SHACKLE FITTING SPECS

Materials

Only top grade materials are used for each component:

Plates: Structural quality carbon steel to ASTM-A36/A572.
Sheaves: Range from cast ductile iron, cast steel, or ForgeFab™ steel units with flame-hardened grooves (sizes 16 inches Outside Diameter and over).
Hooks: Drop Forged alloy steel, quenched and tempered.
Shackles:  Alloy steel, heat treated, with heat treated and tempered carbon or alloy steel pins.
Eyes: Carbon steel forged and heat treated.
Center Pins: AISI 1018/1045 cold finished carbon steel.
Latch Pins: AISI 1040 cold finished or stress proof carbon steel.
